Spirometer

Spirometer

Spirometer
Flow rate measurements

Flow rate measurements

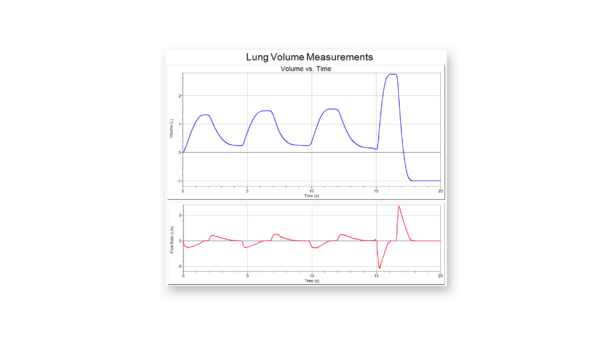

Measuring lung volume

Measuring lung volume

Spirometer

$240.00

The Spirometer is designed to make human respiratory measurements at rest and during moderate activity. Use it to perform a variety of experiments related to air flow and lung volume. The removable flow head (22 mm ID/30 mm OD) makes it easy to clean and sterilize.

ORDER CODE: SPR-BTA Categories ,
Education Levels

Specifications

  • Flow rate: ±10 L/s
  • Dead Space: 93 mL
  • Nominal Output: 128 mV/[L/s]

  • Detachable Flow Head

    • Dimensions: 80.5 mm (diameter) × 101.5 mm (length)
    • Mass: 80 g
    • Construction: Clear acrylic plastic

  • Handle

    • Dimensions: 127 mm × 23 mm × 35 mm
    • Mass: 85 g
    • Construction: Black ABS plastic
  • Cable length: 1.5 meters

Experiments

High School (4 experiments)
ExperimentLab Book
Lung Volumes and CapacitiesHuman Physiology with Vernier
Respiratory Response to Physiologic ChallengesHuman Physiology with Vernier
Analysis of Lung FunctionHuman Physiology with Vernier
Oxygen and Aerobic MetabolismHuman Physiology with Vernier
College (4 experiments)
ExperimentLab Book
Lung Volumes and CapacitiesHuman Physiology with Vernier
Respiratory Response to Physiologic ChallengesHuman Physiology with Vernier
Analysis of Lung FunctionHuman Physiology with Vernier
Oxygen and Aerobic MetabolismHuman Physiology with Vernier

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2Full support
LabQuestFull support
Computers
Software
InterfaceGraphical AnalysisLogger Pro (discontinued)Logger Lite (discontinued)
LabQuest MiniPartial support 1Full supportPartial support 1
LabQuest 3Full support 1 2Full supportIncompatible 1
LabQuest 2Full support 1 2Full supportPartial support 1
LabQuest StreamPartial support 1 3Full supportPartial support 1 3
Go!LinkPartial support 1Full supportPartial support 1
LabQuestPartial support 1Full supportPartial support 1
LabProIncompatibleFull supportPartial support 1

Compatibility Notes

  1. Software does not support baseline adjustment.
  2. Full support of this sensor is only available when LabQuest 2 or LabQuest 3 is connected to a computer or Chromebook via Wireless Data Sharing.
  3. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis
LabQuest MiniPartial support 1
LabQuest 3Full support 1 2
LabQuest 2Full support 1 2
LabQuest StreamPartial support 1 3
Go!LinkPartial support 1
LabQuestPartial support 1

Compatibility Notes

  1. Software does not support baseline adjustment.
  2. Full support of this sensor is only available when LabQuest 2 or LabQuest 3 is connected to a computer or Chromebook via Wireless Data Sharing.
  3. Connect LabQuest Stream via USB. Wireless connection is not supported.
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest StreamPartial support 1Incompatible
LabQuest 3Full support 2Full support 2
LabQuest 2Full support 2Full support 2

Compatibility Notes

  1. Software does not support baseline adjustment.
  2. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest StreamPartial support 1Incompatible
LabQuest 3Full support 2Full support 2
LabQuest 2Full support 2Full support 2

Compatibility Notes

  1. Software does not support baseline adjustment.
  2. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1

Compatibility Notes

  1. Requires advanced programming for data collection
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQFull support
Vernier myDAQ AdapterFull support 1 2
Go!LinkFull support 2
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 3Full support
LabQuest 2Full support
LabQuestFull support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
  2. Requires advanced programming for data collection
Texas Instruments
Software
InterfaceEasyDataDataMateTI-84 SmartViewDataQuestTI-Nspire Software
EasyLinkPartial support 1 2IncompatiblePartial support 1 3Partial support 1Partial support 1 3
CBL 2Partial support 1 4Partial support 1 4 5IncompatibleIncompatibleIncompatible
LabProPartial support 1 4Partial support 1 4 5IncompatibleIncompatibleIncompatible
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatiblePartial support 1Partial support 1

Compatibility Notes

  1. Software does not support baseline adjustment.
  2. Use with TI-84 Plus calculators only.
  3. Requires an Easy to Go! adapter
  4. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  5. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

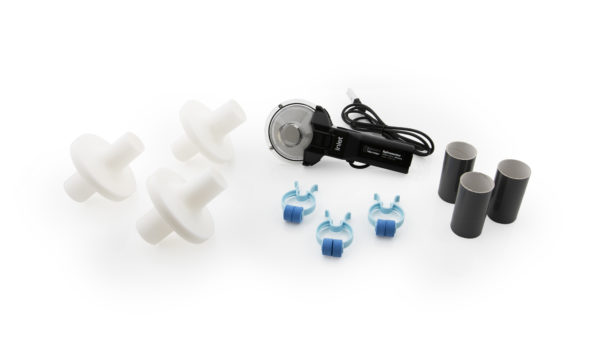

What's Included

  • Vernier Spirometer (includes sensor handle and flow head)
  • (3) disposable mouthpieces
  • (3) disposable bacterial filter
  • (3) nose clips

Accessories

AccessoryOrder CodePriceQuantity
O2 Gas Sensor to Spirometer AdapterO2-SPR$8.00
Disposable Mouthpieces for Spirometer - 30 PackSPR-MP30$17.00
Disposable Bacterial Filters for Spirometer - 30 PackSPR-FIL30$129.00
Noseclips for Spirometer - 30 PackSPR-NOSE30$25.00
Disposable Mouthpieces for Spirometer - 100 PackSPR-MP100$39.00
Disposable Bacterial Filters for Spirometer - 10 PackSPR-FIL10$45.00
Noseclips for Spirometer - 10 PackSPR-NOSE10$10.00
Replacement PartOrder CodePriceQuantity
Disposable Mouthpieces for Spirometer - 100 PackSPR-MP100$39.00
Disposable Mouthpieces for Spirometer - 30 PackSPR-MP30$17.00
Disposable Bacterial Filters for Spirometer - 30 PackSPR-FIL30$129.00
Disposable Bacterial Filters for Spirometer - 10 PackSPR-FIL10$45.00
Noseclips for Spirometer - 30 PackSPR-NOSE30$25.00
Noseclips for Spirometer - 10 PackSPR-NOSE10$10.00
Spirometer Flow HeadSPR-FLOW$60.00

Support

Resources

Warranty

5-year limited warranty (consumables excluded)
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
