ORP Sensor

ORP Sensor

ORP Sensor

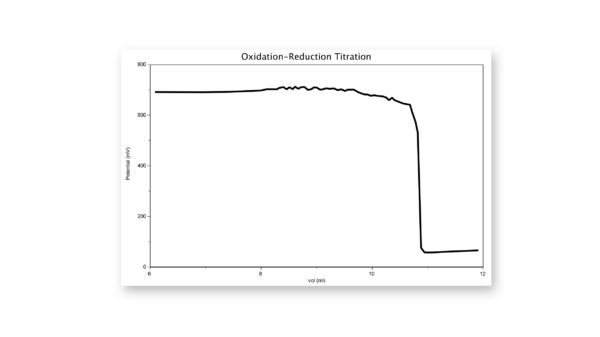

Oxidation-reduction titration of bleach with hydrogen peroxide

Oxidation-reduction titration of bleach with hydrogen peroxide

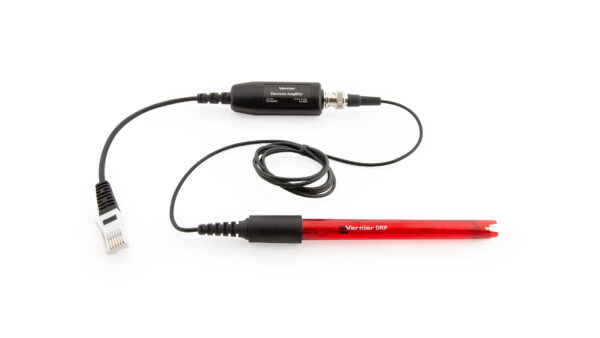

ORP Sensor

$115.00

The Oxidation-Reduction Potential (ORP) Sensor measures the ability of a solution to act as an oxidizing or reducing agent. Use the ORP Sensor to measure the oxidizing ability of chlorine in swimming pools or to determine when the equivalence point has been reached in an oxidation-reduction reaction.

ORDER CODE: ORP-BTA Categories ,
Education Levels

Specifications

  • Type: Sealed, gel-filled, epoxy body, Ag/AgCl reference
  • Storage solution: pH-4/KCl solution (10 g KCl in 100 mL buffer pH-4 solution)
  • Cable: 1 meter coaxial cable with BNC connector
  • Redox potential range: -450 to +1100 mV
  • ORP element: 99% pure platinum band sealed on a glass stem

  • Temperature range:

    • 0-60ºC
    • 12 mm OD
    • Impedance: ~20 kΩ at 25ºC

Experiments

High School (4 experiments)
ExperimentLab Book
Determining the Percent Peroxide in a Commercial ProductVernier Chemistry Investigations for Use with AP* Chemistry
Potentiometric Titration of Hydrogen PeroxideAdvanced Chemistry with Vernier
An Oxidation-Reduction Titration: The Reaction of Fe2+ and Ce4+Advanced Chemistry with Vernier
Oxidation-Reduction TitrationsInvestigating Chemistry through Inquiry
College (3 experiments)
ExperimentLab Book
Potentiometric Titration of Hydrogen PeroxideAdvanced Chemistry with Vernier
An Oxidation-Reduction Titration: The Reaction of Fe2+ and Ce4+Advanced Chemistry with Vernier
Oxidation-Reduction TitrationsInvestigating Chemistry through Inquiry

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2Full support
LabQuestFull support
Computers
Software
InterfaceGraphical AnalysisLogger Pro (discontinued)Logger Lite (discontinued)
LabQuest MiniFull supportFull supportFull support
LabQuest 3Full supportFull supportIncompatible
LabQuest 2Full supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 1
Go!LinkFull supportFull supportFull support
LabQuestFull supportFull supportFull support
LabProIncompatibleFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis
LabQuest MiniFull support
LabQuest 3Full support
LabQuest 2Full support
LabQuest StreamFull support 1
Go!LinkFull support
LabQuestFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest StreamFull supportFull support
LabQuest 3Full support 1Full support 1
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest StreamFull supportFull support
LabQuest 3Full support 1Full support 1
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
Go!LinkFull support
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 3Full support
LabQuest 2Full support
LabQuestFull support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Texas Instruments
Software
InterfaceEasyDataDataMateTI-84 SmartViewDataQuestTI-Nspire Software
EasyLinkFull support 1IncompatibleFull support 2Full supportFull support 2
CBL 2Full support 3Full support 3 4IncompatibleIncompatibleIncompatible
LabProFull support 3Full support 3 4IncompatibleIncompatibleIncompatible
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatibleFull supportFull support

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  4. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

Accessories

AccessoryOrder CodePriceQuantity
Electrode SupportESUP$10.00
pH Storage SolutionPH-SS$25.00
Replacement PartOrder CodePriceQuantity
Storage Solution Bottles (5)BTL$10.00
ORP Electrode BNCORP-BNC$62.00

Support

Resources

Warranty

5-year limited warranty
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
